COMPLETE BOTTOM END CRANK ASSEMBLY AND GASKET KIT (Wiseco)

Shop Home » Marshall ATV & UTV 2010 » Engine » Crankshafts
Audio Accounts Products Images

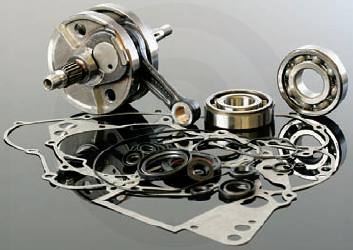

COMPLETE BOTTOM END CRANK ASSEMBLY AND GASKET KIT
Click here to view full image.
This product is part of
Marshall ATV & UTV 2010

Starting at $170.42
  • Description
  • Features
  • Request Information
  • Send to a Friend
Wiseco’s line of crankshaft assemblies are supplied with premium main bearings and a complete bottom end gasket kit, including all seals and gaskets.
  • Caged needle roller bearings provide the highest possible RPM.
  • Crank pin bearings are manufactured from the highest quality, hot rolled steel, case hardened to 58-62 RC.
  • All bearings are OEM quality for reliability and performance.
  • Wiseco’s complete gasket kits are made from premium materials for maximum sealing and reliability.
  • Silver coated bronze phosphor thrust washer, with dimpled design to increase oil retention and reduce friction between rod and washer interface.
  • Top end rod is bushed for oil retention and eliminates pin gauling. The bottom end rod bores are case hardened to 58-62 RC to optimize bearing running surface.
  • Double forged, Wiseco connecting rods maintain superior dimensional consistency through improved grain flow. Shot peening eliminates residual stresses and smoothly blends the rod forging surfaces.
  • Double drilled small ends provide the piston pin with extra lubrication and cooling, reducing distortion of top end due to thermal transfer from the piston.
  • Precision engineered oiling slots maximize rod strength and bearing life.
Product Information
Name:COMPLETE BOTTOM END CRANK ASSEMBLY AND GASKET KIT
Manufacturer:Wiseco
Additional Contact Information

Fill out your contact information to request information on this product, or contact us at the number below.

Phone:(727) 378-8548
Fax:(727) 378-8548
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:COMPLETE BOTTOM END CRANK ASSEMBLY AND GASKET KIT
Manufacturer:Wiseco
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Complete Bottom End Crank Assemblies and Gasket Kits for Honda (COMPLETE BOTTOM END CRANK ASSEMBLY AND GASKET KIT) [^top]
Qty Description   Our Price (USD)
Part#: 16-3426
FITS: TRX250R, YEAR: ’87-89, MAKE: Honda - Complete Bottom End Crank Assembly and Gasket Kit
$260.35
$234.32
$26.03

Part#: 16-3745
FITS: TRX400EX, YEAR: ’99-04, MAKE: Honda - Complete Bottom End Crank Assembly and Gasket Kit
$343.20
$308.88
$34.32

Complete Bottom End Crank Assemblies and Gasket Kits for Yamaha (COMPLETE BOTTOM END CRANK ASSEMBLY AND GASKET KIT) [^top]
Qty Description   Our Price (USD)
Part#: 16-3461
FITS: YFS200 Blaster, YEAR: ’88-06, MAKE: Yamaha - Complete Bottom End Crank Assembly and Gasket Kit
$189.35
$170.42
$18.93

Part#: 16-3747
FITS: YFM350R Raptor, YEAR: ’04-05, MAKE: Yamaha - Complete Bottom End Crank Assembly and Gasket Kit
$343.20
$308.88
$34.32

Part#: 16-3747
FITS: YFM350X Warrior, YEAR: ’87-04, MAKE: Yamaha - Complete Bottom End Crank Assembly and Gasket Kit
$343.20
$308.88
$34.32

Part#: 16-3425
FITS: YFZ350 Banshee, YEAR: ’87-06, MAKE: Yamaha - Complete Bottom End Crank Assembly and Gasket Kit
$535.50
$481.95
$53.55

Part#: 16-3462
FITS: YFZ350 Banshee, YEAR: ’87-06, MAKE: Yamaha, STYLE: Long Rod - Complete Bottom End Crank Assembly and Gasket Kit
$571.95
$514.76
$57.19

Part#: 16-3463
FITS: YFZ350 Banshee, YEAR: ’87-06, MAKE: Yamaha, STYLE: Long Rod Stroker - Complete Bottom End Crank Assembly and Gasket Kit
$650.90
$585.81
$65.09

Part#: 16-3755
FITS: YFM660F Grizzly, YEAR: ’02-08, MAKE: Yamaha - Complete Bottom End Crank Assembly and Gasket Kit
$361.55
$325.40
$36.15

Part#: 16-3746
FITS: YFM660R Raptor, YEAR: ’01-05, MAKE: Yamaha - Complete Bottom End Crank Assembly and Gasket Kit
$361.55
$325.40
$36.15

Part#: 16-3755
FITS: YXR660F Rhino, YEAR: ’05-07, MAKE: Yamaha - Complete Bottom End Crank Assembly and Gasket Kit
$361.55
$325.40
$36.15
